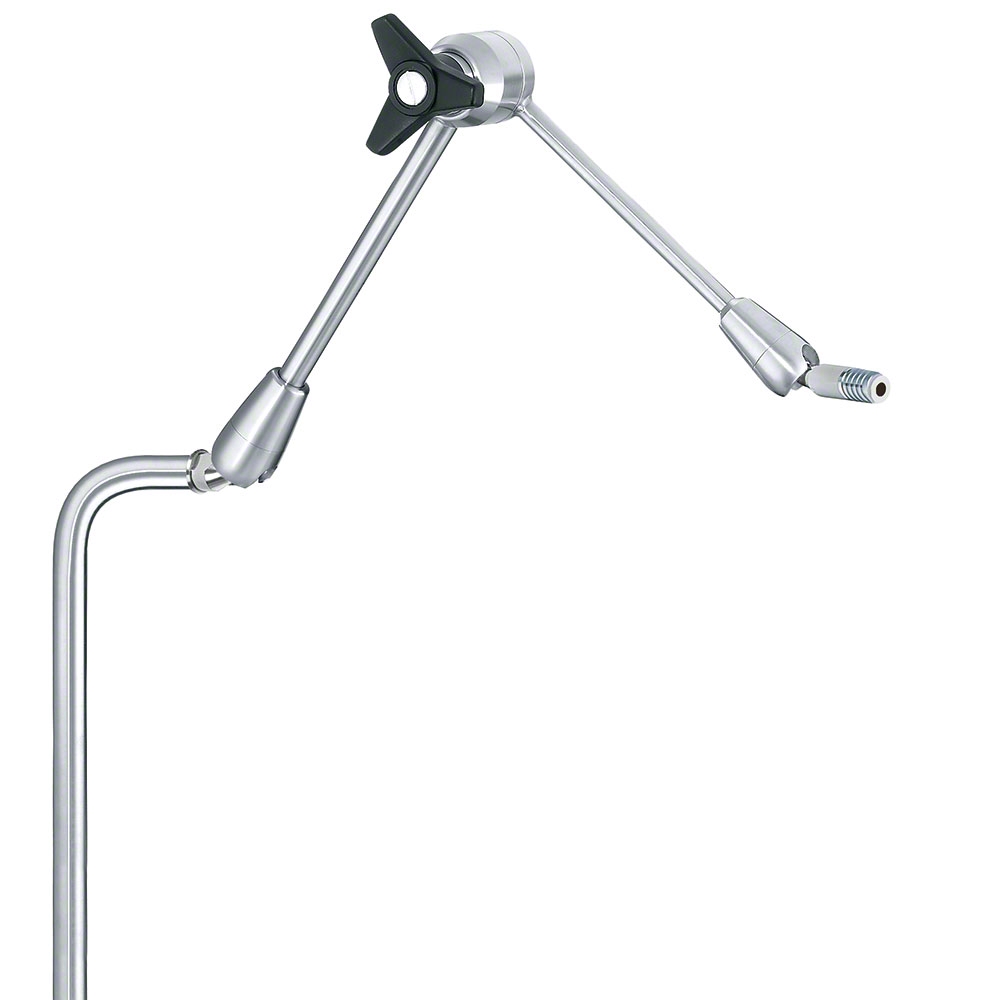

M-TRAC Mechanical Holding Arm
Easy and safe holding of scopes and trocars for neuroendoscopy
Simple, stable and smooth are the major characteristics of the Aesculap M-TRAC holding arm. The Aesculap M-TRAC gives you both a stable performance (especially for FULL HD cameras) and excellent flexibility and manoeuvrability for your neuroendoscope. With the M-TRAC "holding the scope" is not an issue anymore. A big selection of adapters, instruments, trocars and scopes offer you a variety of indications.
Advantages
- Easy mechanical fixation by clamping handle
- Small, flexible joints for fine positioning
- Autoclavable 134°C, 5 minutes
- Full range of accessories/adapters for connecting Aesculap endoscopes, trocars and instruments
- Holding Arm fits into regular Standard 1/1 Container
Features
- Assembly: holding arm with integrated fixation bar
- Total length: 107 cm
- Diameter of fixation bar: 20 mm
- Total weight: 2,9 kg
- Holding force: 4 kg
Indication
- Any surgical intervention for holding e.g. optical systems, cameras, instruments and trocars
- Especially for holding scopes and trocars in neuroendoscopy (intraventricular, transnasal, endoscope-assisted and spinal)
